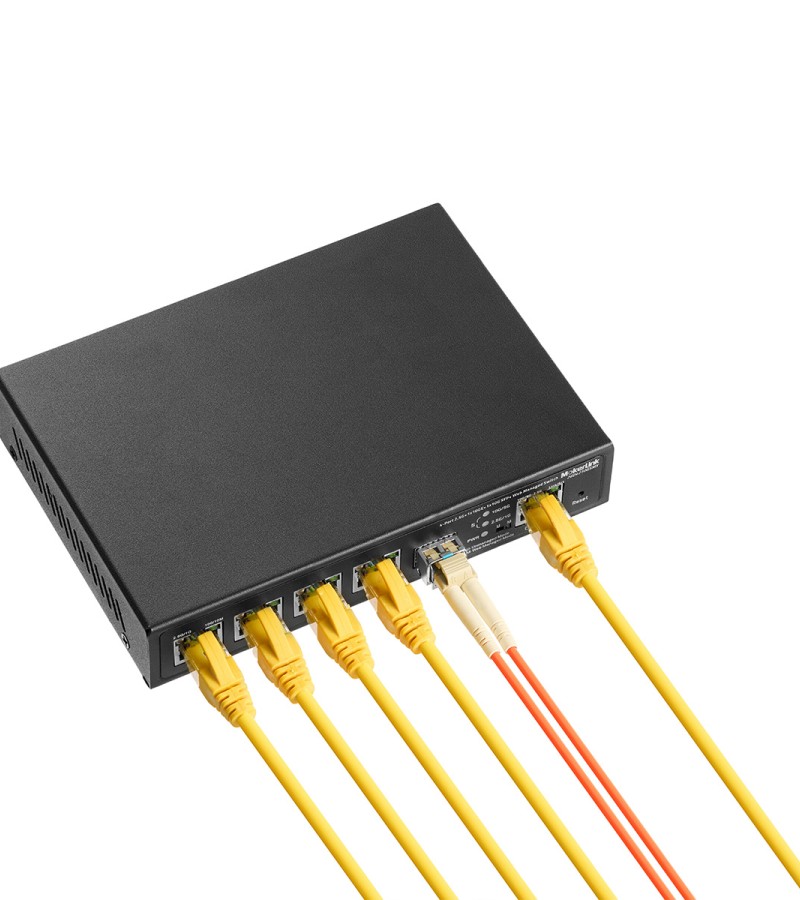

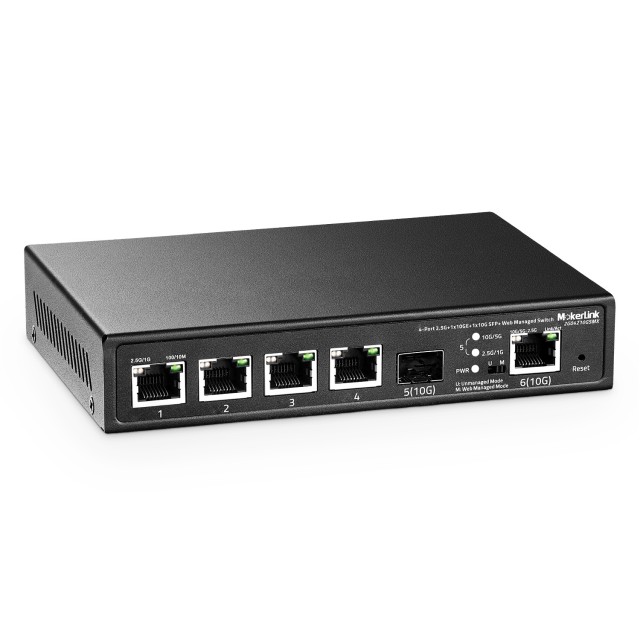

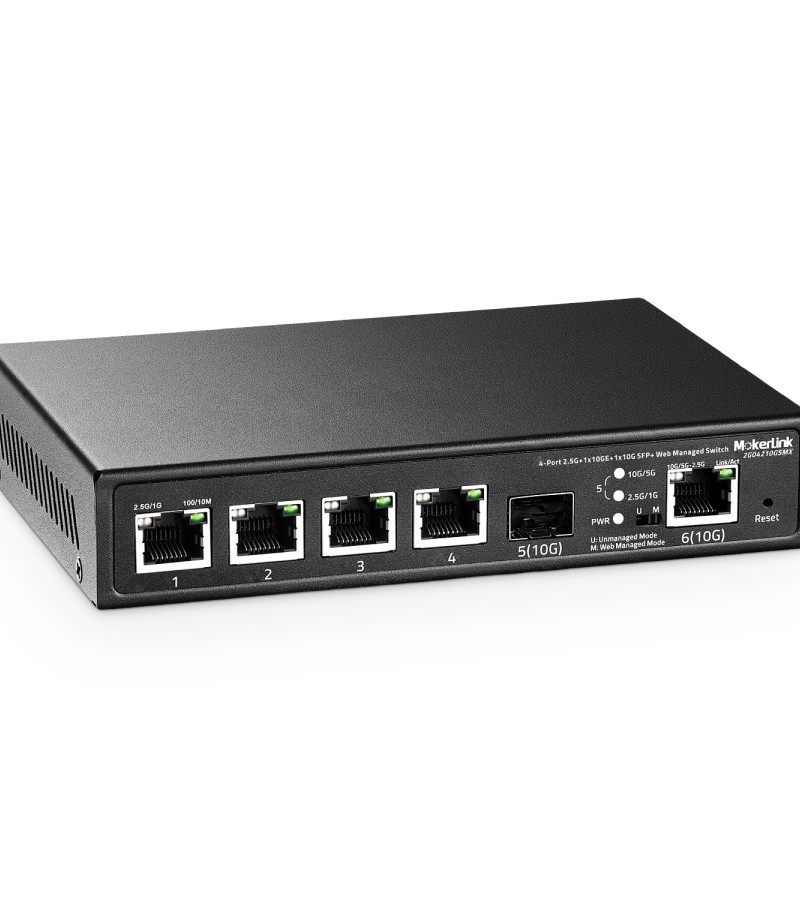

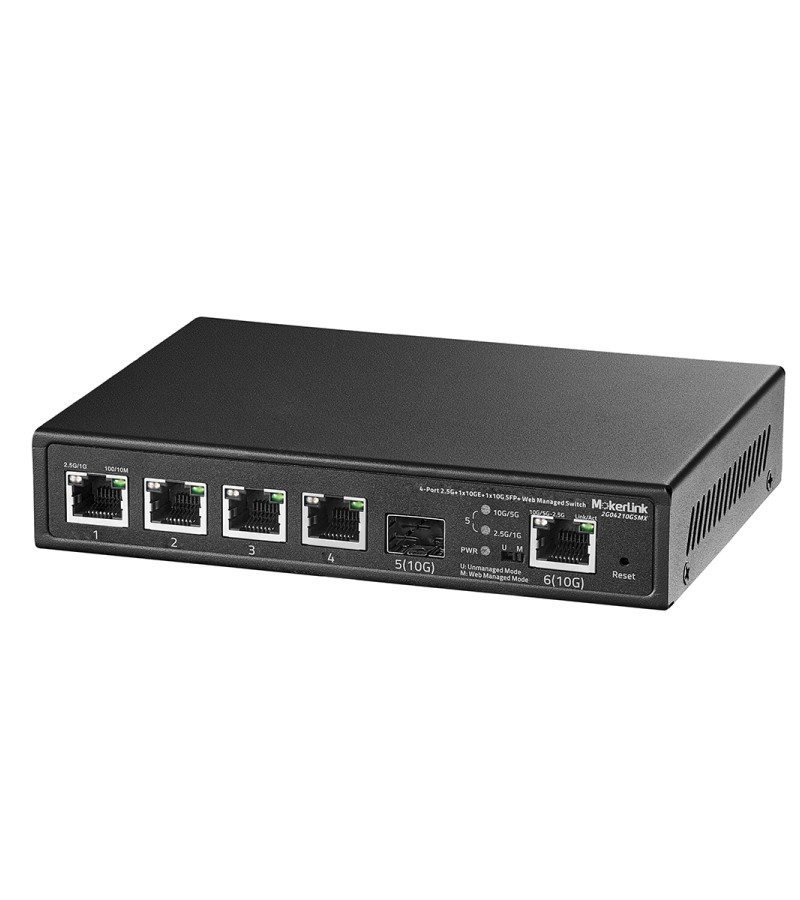

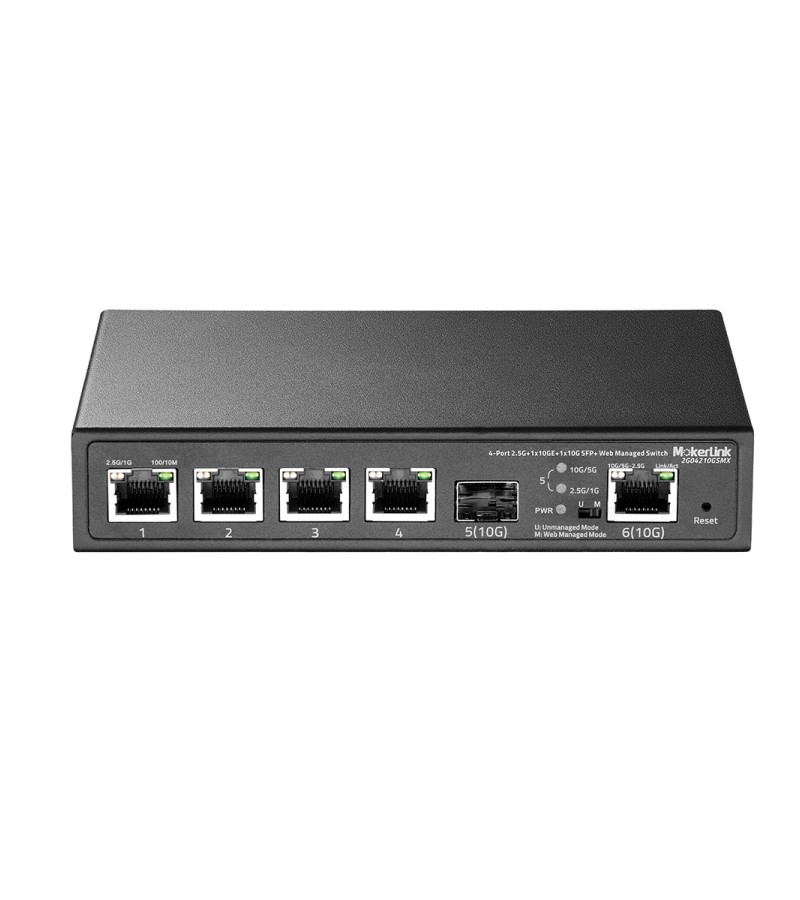

MokerLink 4 Port 2.5G Ethernet Managed Switch, 1 Port 10G Ethernet, 1 Port 10G SFP+ Slot, 4 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Web Managed Fanless Small Network Switch

4 x 2.5G RJ45 ports + 1 x 10G RJ45 port + 1 x 10G SFP port, Support web managed and unmanaged mode, L2 function, VLAN, QoS, security, multicast, diagnosis, etc. Easy to maintain and widely used.

$119.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: 2G04210GSMX
  • Availability: In Stock

Total $119.99
  • 2.5G/10G Ports: The network switch has 4 x 2.5Gigabit Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1x 10G Ethernet Ports(compatible 1G/2.5G/5G Ethernet), 1 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 60Gbps backplane bandwidth, excellent data forwarding performance

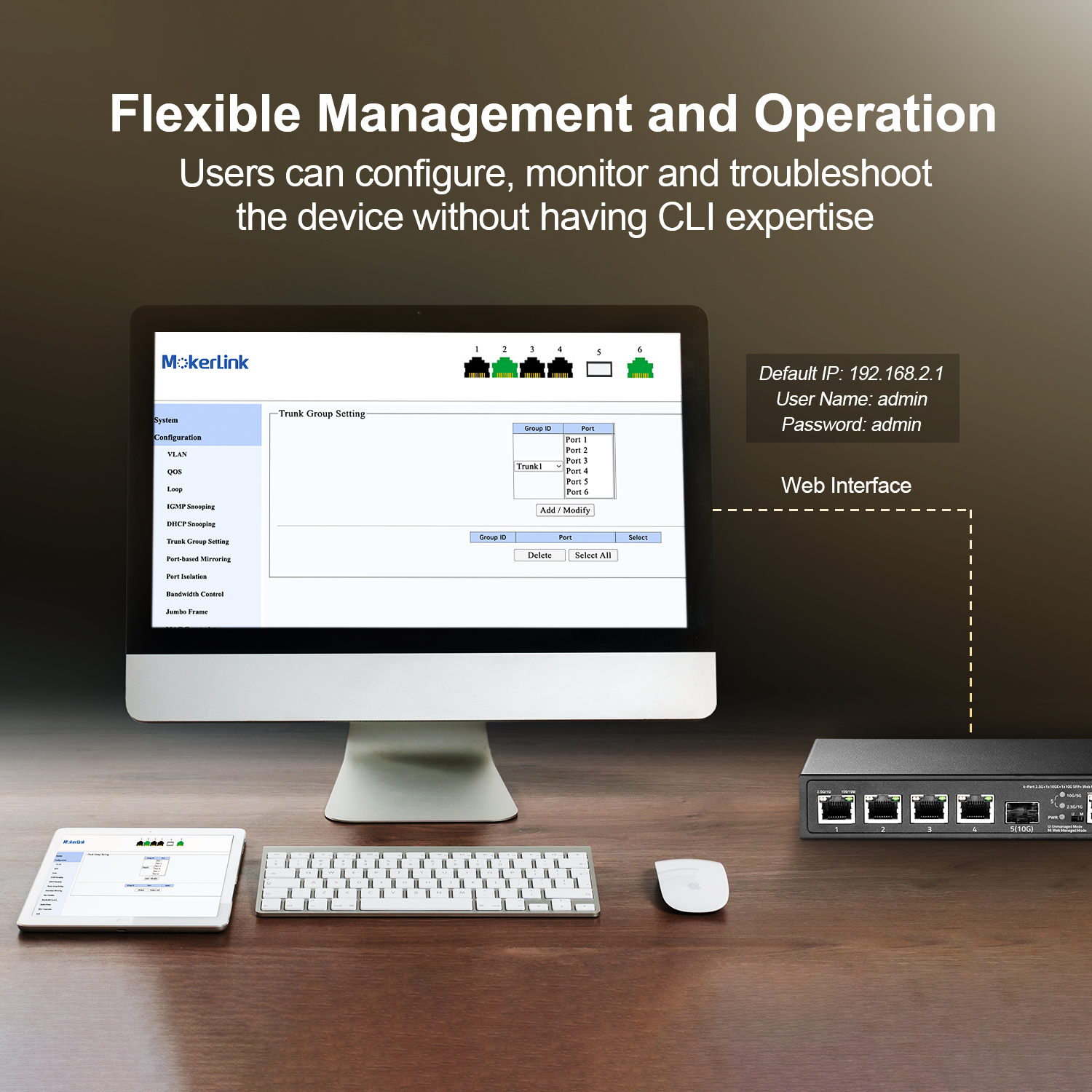

  • Web GUI management: Supports unmanaged and Web management modes, controlled by dip switches. When open the management mode, support device/port status query and various configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc.
  • Metal Fanless: With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation
  • Easy to Maintain:Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
  • Widely Used: Mini small size, desktop/wall-mounting design, well-suited for various environments, such as home entrainment and office, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.




Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product Model2G04210GSMX
Product Name4-Port 2.5G + 1-Port 10GE +1-Port 10G SFP+ Web Managed Switch
Ethernet Port4*10/100/1000/2500Base-TX RJ45 port + 1*1000/2.5G/10G SFP + 1*100/1000/2.5G/5G/10G uplink RJ45 port
Switching Capacity50Gbps
Packet Buffer8.1 Mbit
MAC Address4K
Jumbo Frame12Kbyte
Transfer ModeStore and forward
Network protocol IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control)
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network MediumMulti-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Fiber MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Lighting ProtectionCommon mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV
Working EnvironmentOperating temperature: -10~+55°C;5%~90% RH Non coagulation, Storage temperature: -40~+75°C;5%~95% RH Non coagulation

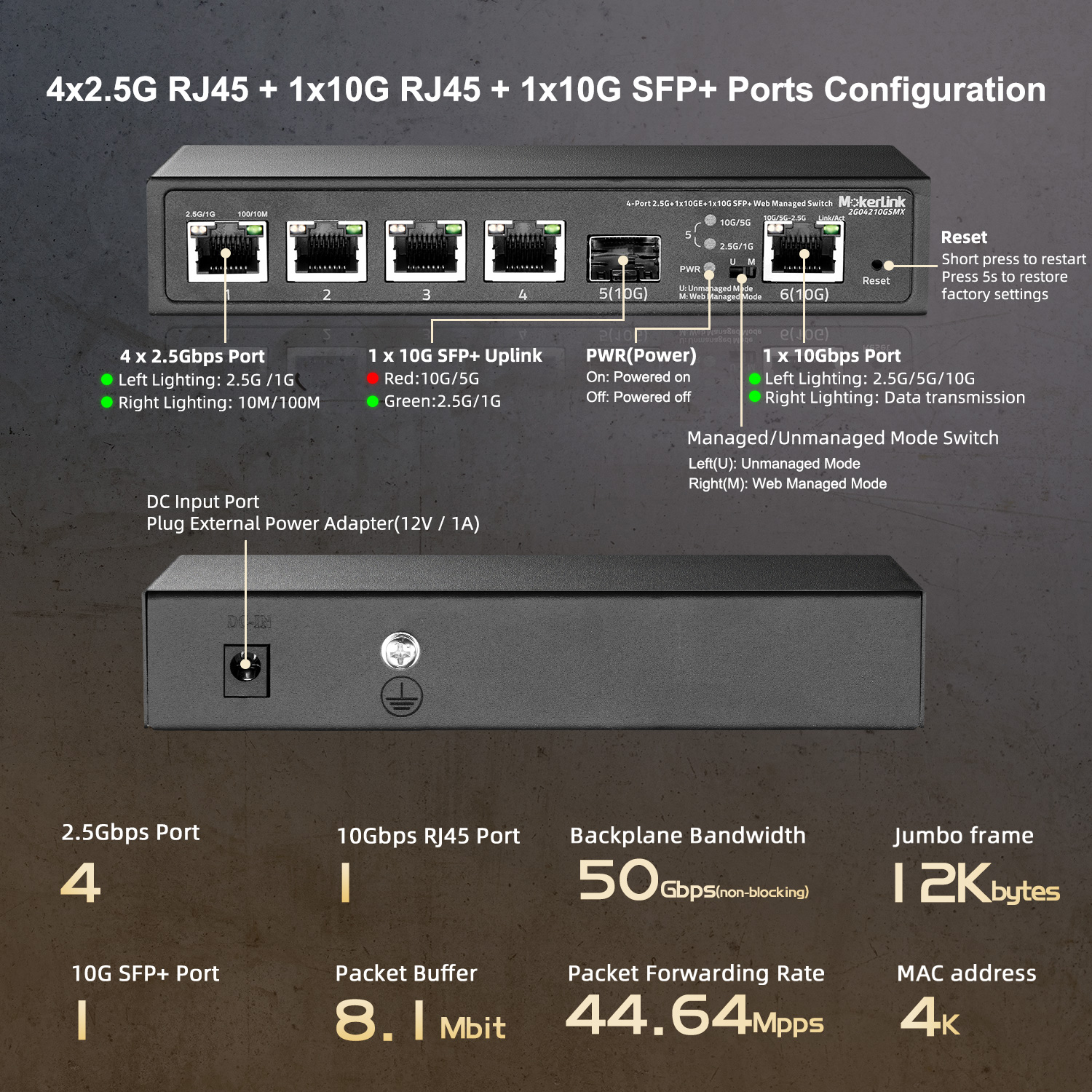

LED IndicatorPWR: Power LED/SYS LED, 1-4 Ports: Link/Act LED, 1G speed LED, 2.5G speed LED, Port 5: Link/Act LED, 2.5G speed LED, 10G speed LED, Port 6: Link/Act LED, 2.5G/5G speed LED, 10G speed LED
Structure SizeProduct size: 160mm*112mm*30mm Package size: 265mm*220mm*68mm Product weight: 0.54kg Packing weight: 0.85kg
InstallationDesktop/Wall Mount
ShellBlack Color, Metal Shell
Power VoltageExternal power DC 12V1A, Max 10W (100-240Vac 50/60Hz 0.2A)
Package ListSwitch 1pcs, Specification 1pcs, Power adapter 1pcs
Software FunctionL2 Software Function
