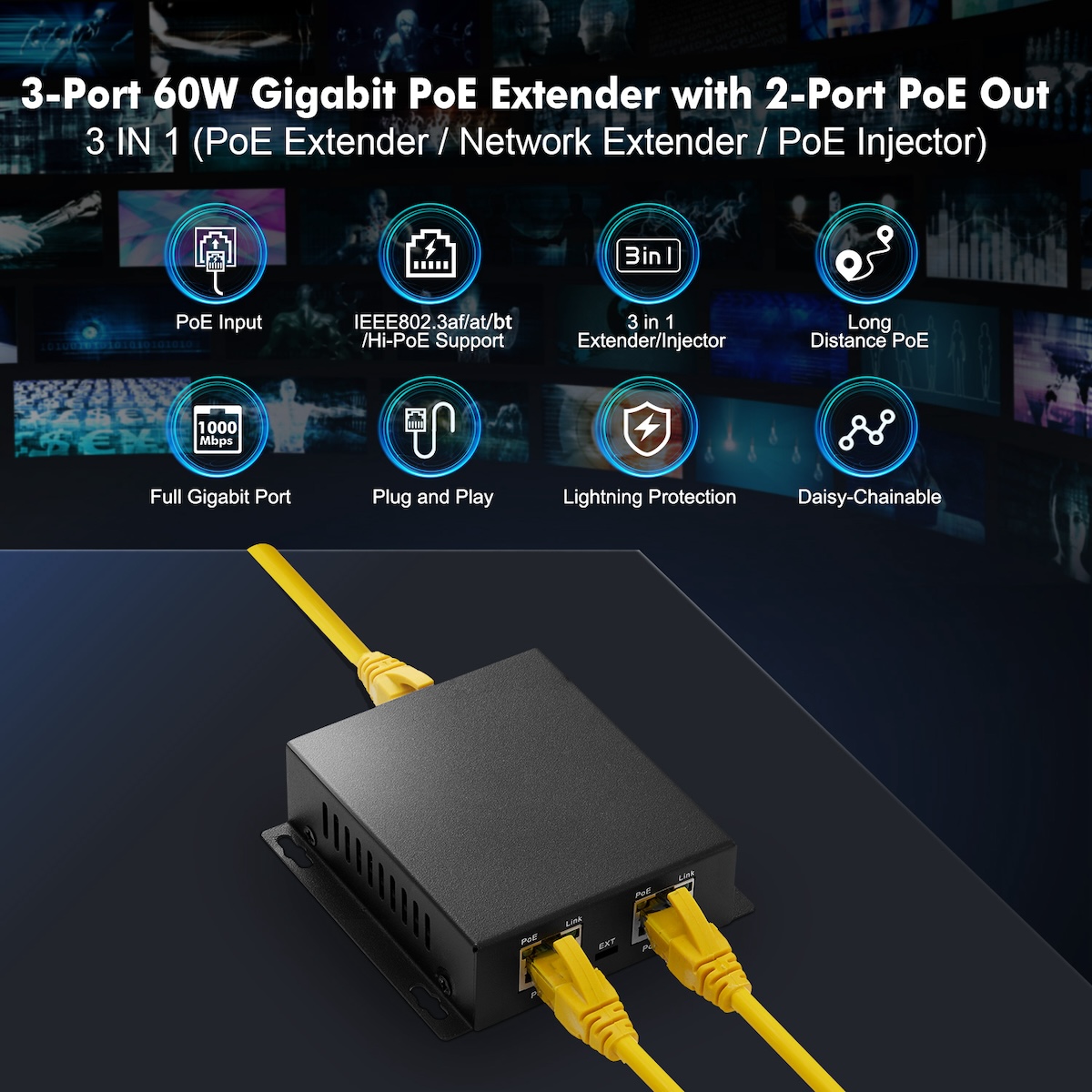

MokerLink 3 Ports Gigabit PoE Passthrough Switch, IEEE 802.3af/at/bt PoE Powered Max 60W, Hi-PoE 90W, 100/1000Mbps, 1 PoE in 2 PoE Out, Wall Mount, PoE Extender/Injector/Network Extender Three in one

PoE Powered, IEEE 802.3af/at/bt PoE Repeater, Max 90W PoE in, 100/1000Mbps, 1 PoE in 2 PoE Out, Wall Mount, PoE Extender/Injector/Network Extender 3 in 1

$62.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: EXT-102GBT
  • Availability: In Stock

Total $62.99

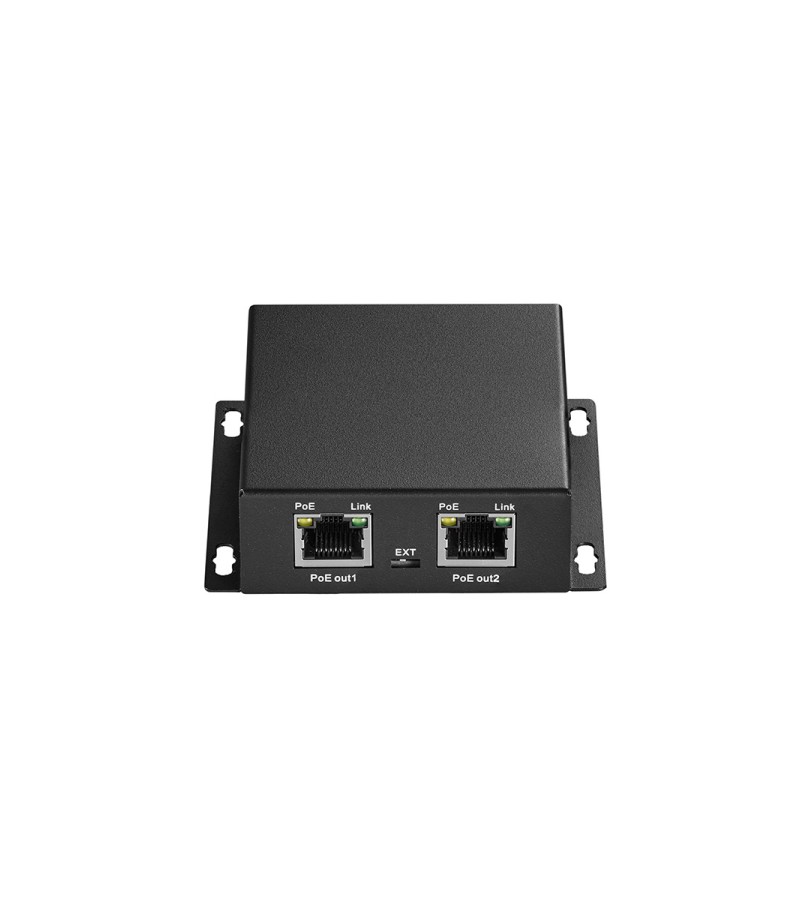

Gigabit Ports: Include 1 PoE In, 2 PoE Out, all Ports support gigabit 10/100/1000Mbps speed auto-adaptive. Ext dial switch support port Isolation.

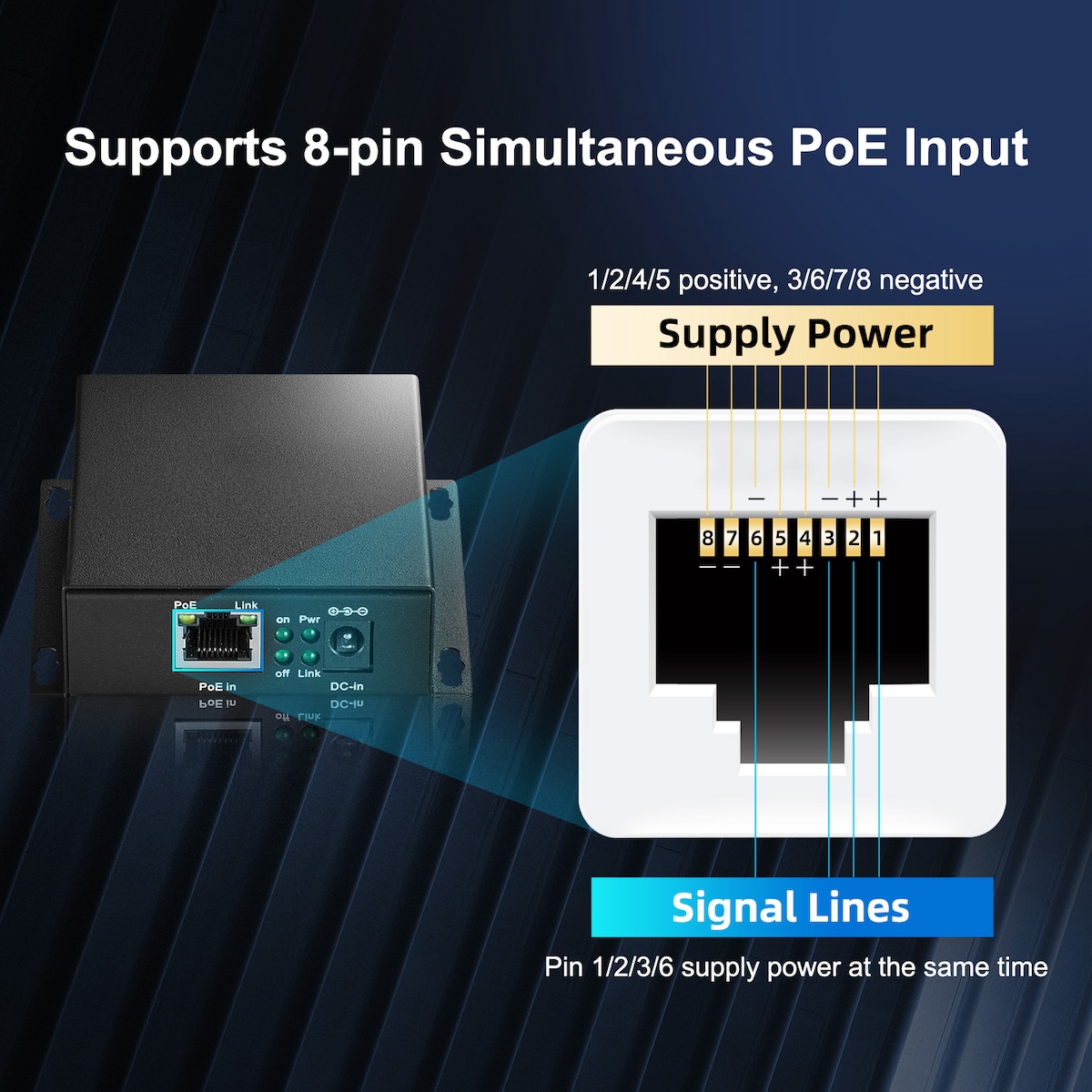

IEEE 802.3 af/at/bt: Support this standard PoE, Input/Output Max 90W. IEEE 802.3 af 15.4W, IEEE 802.3 at 30W, IEEE 802.3 bt 60W, Hi-PoE 90W. PoE input pin 1/2 (+), 3/6 (-), 4/5(+), 7/8(-).**Not support passive 24V PoE**

Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.

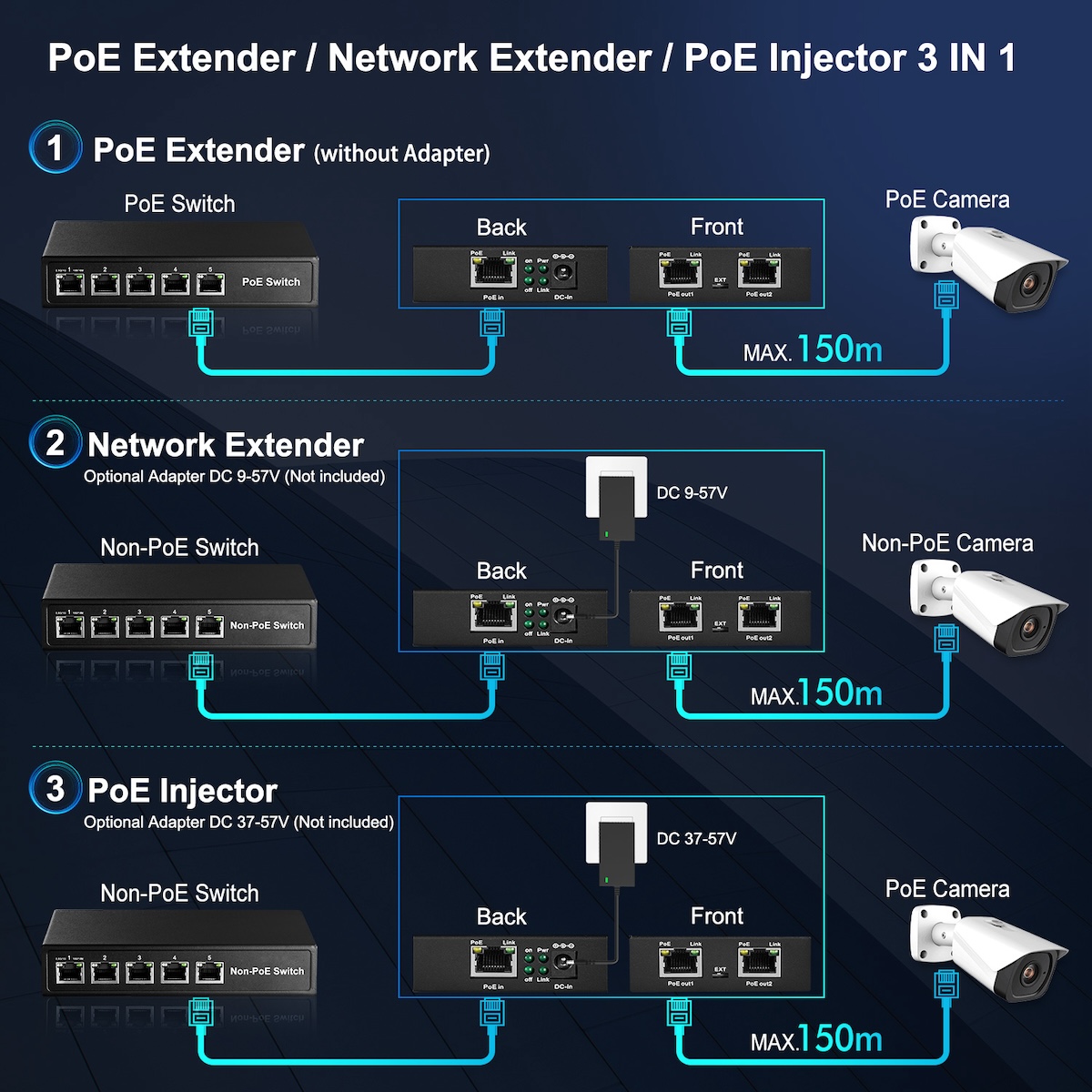

PoE or DC Power: Powered by PoE or DC(not inculded). When Input DC 12V 0.5A, as a network extender. When Input DC 37-57V 0.5A, as a poe switch. So it has Three in One functions: POE Extender, network Extender and POE switch according to different power supplies.

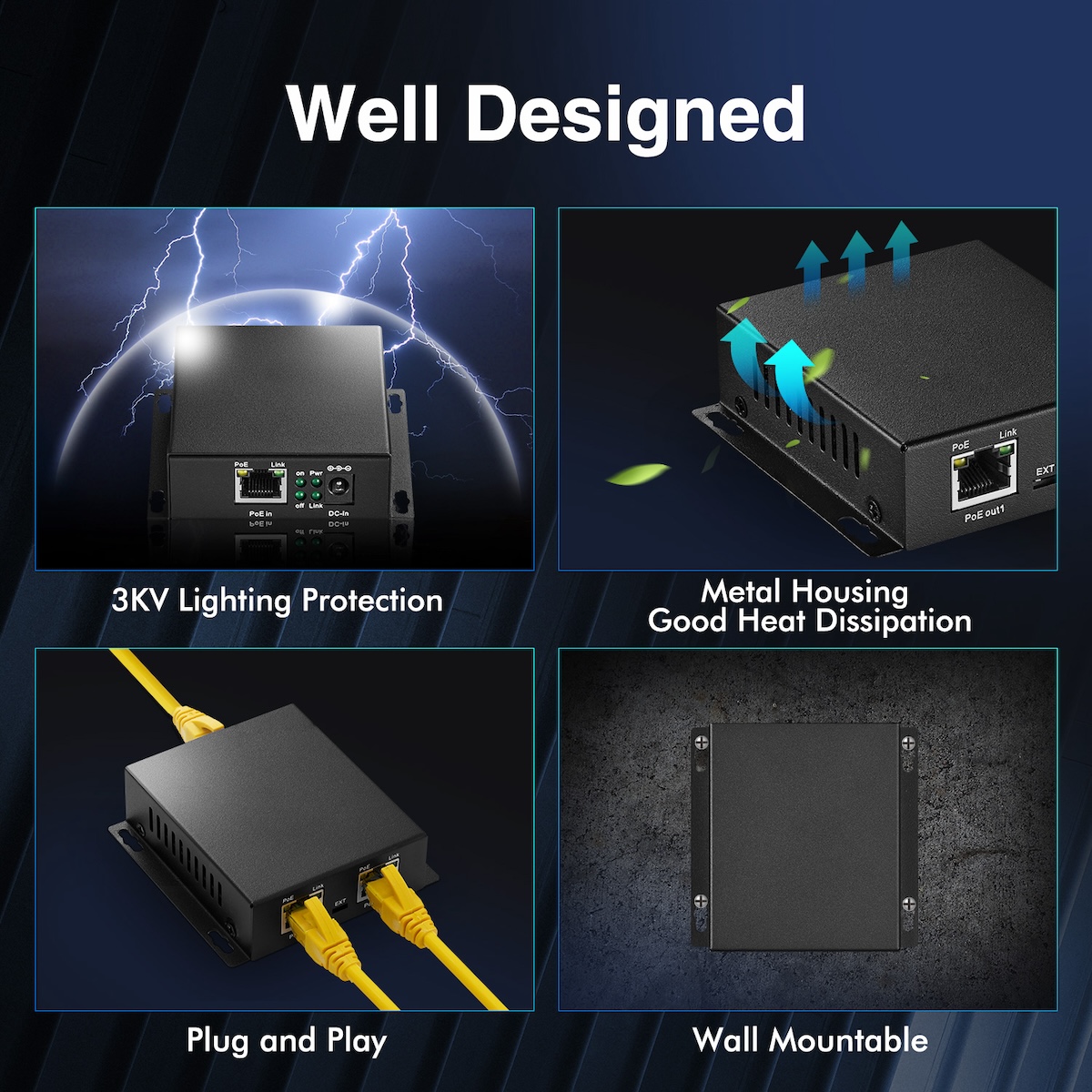

Widely Used: Metal case, LED indicator, support wall mount and desktop install, small size save space, suitable for more positions, connect poe AP, camera, phone and other POE devices, expand the coverage of POE network

Please note that the default does not include power supply and is powered through the IEEE802.3AF/AT/BT standard POE network .Default power supply via IEEE802.3af/at/bt POE network as POE extender



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelEXT-102GBT
Product Name3 Port 1000M IEEE802.3bt PoE Extender

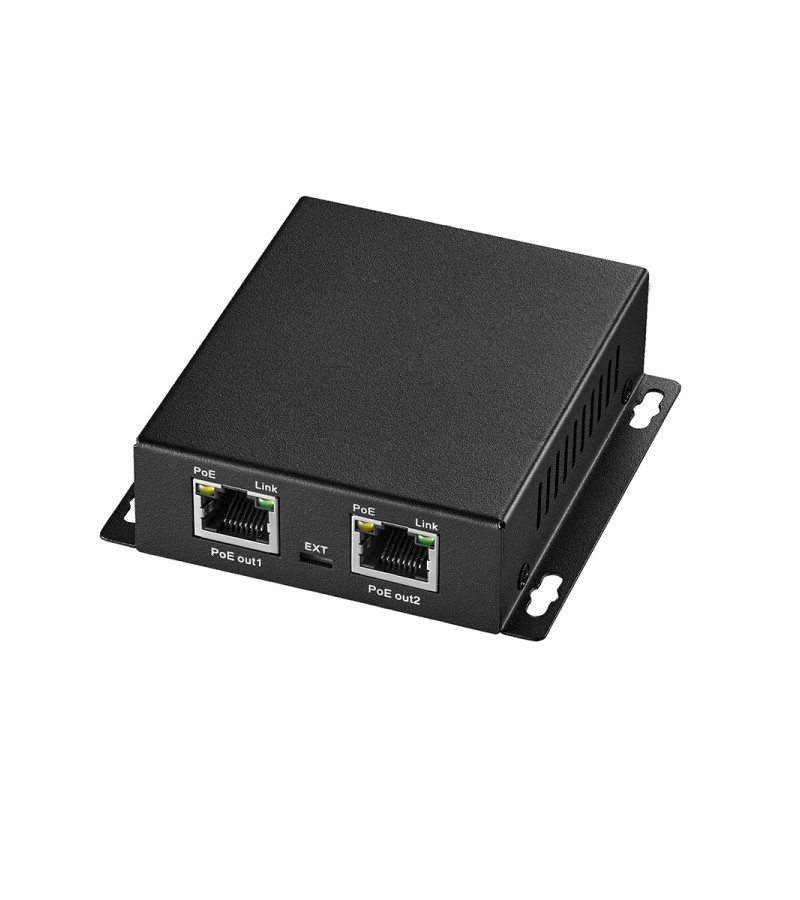

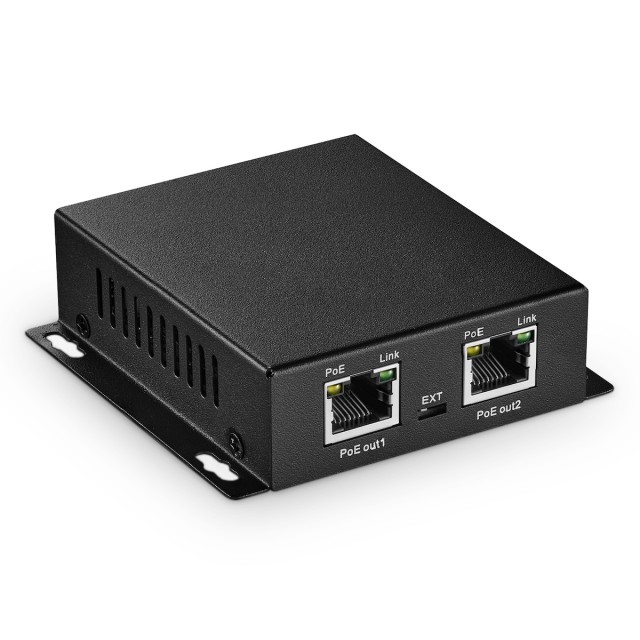

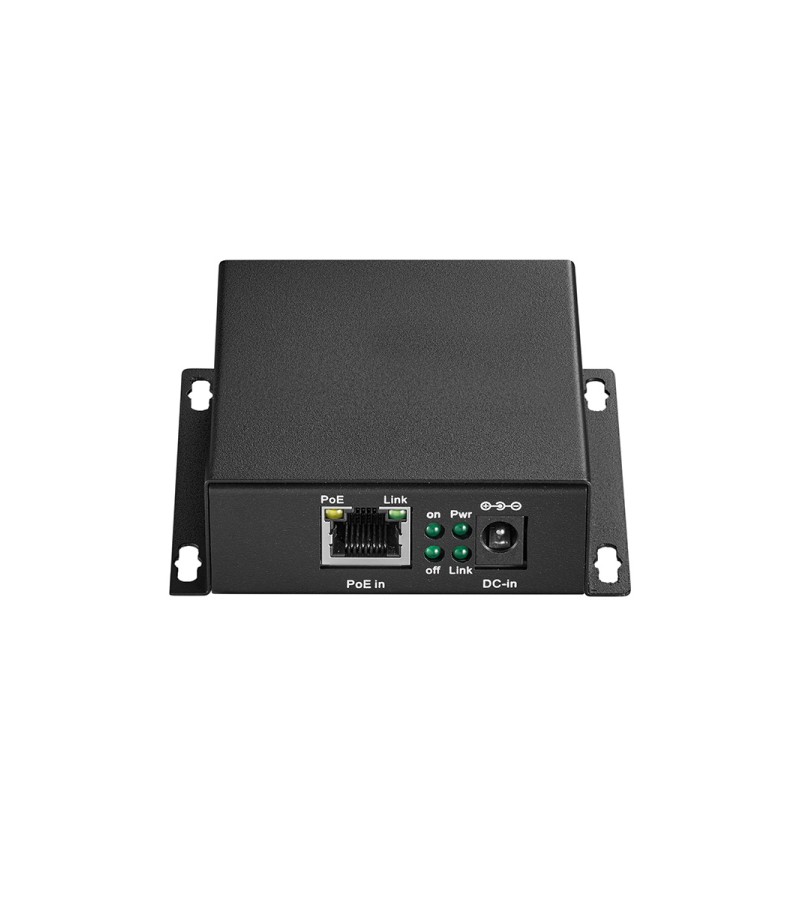

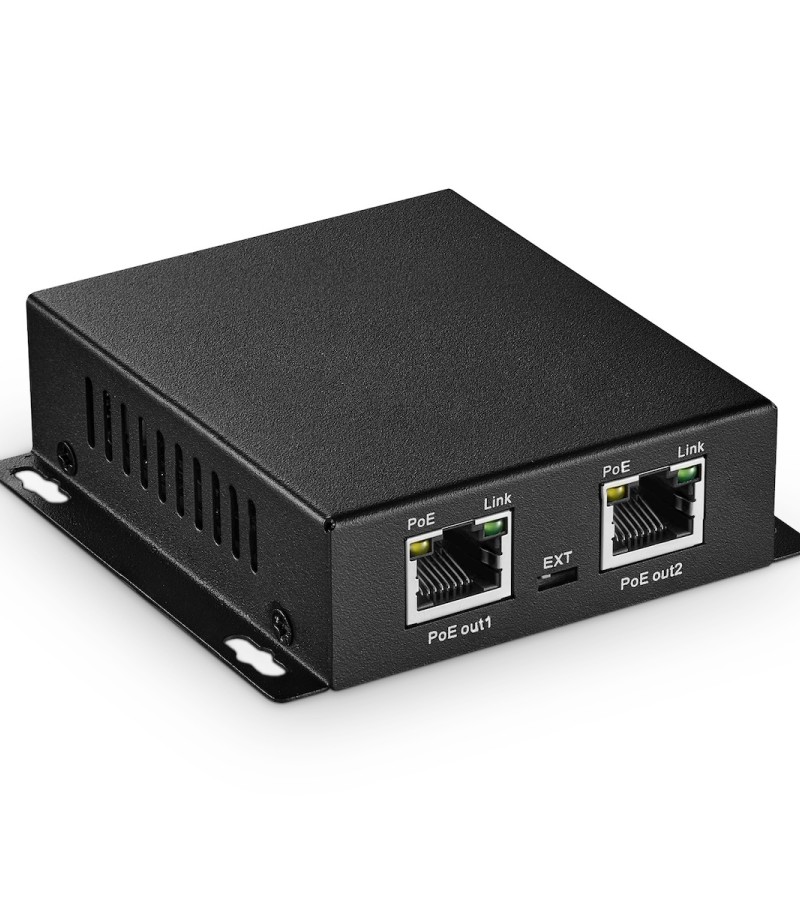

Ethernet Port1* 10/100/1000M PoE input port + 2* 10/100/1000M PoE ouput port
Switching Capacity12Gbps
Throughput7.2Mpps
Packet Buffer1.2Mpps
MAC Address2K
Transfer ModeStore and forward
Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control)

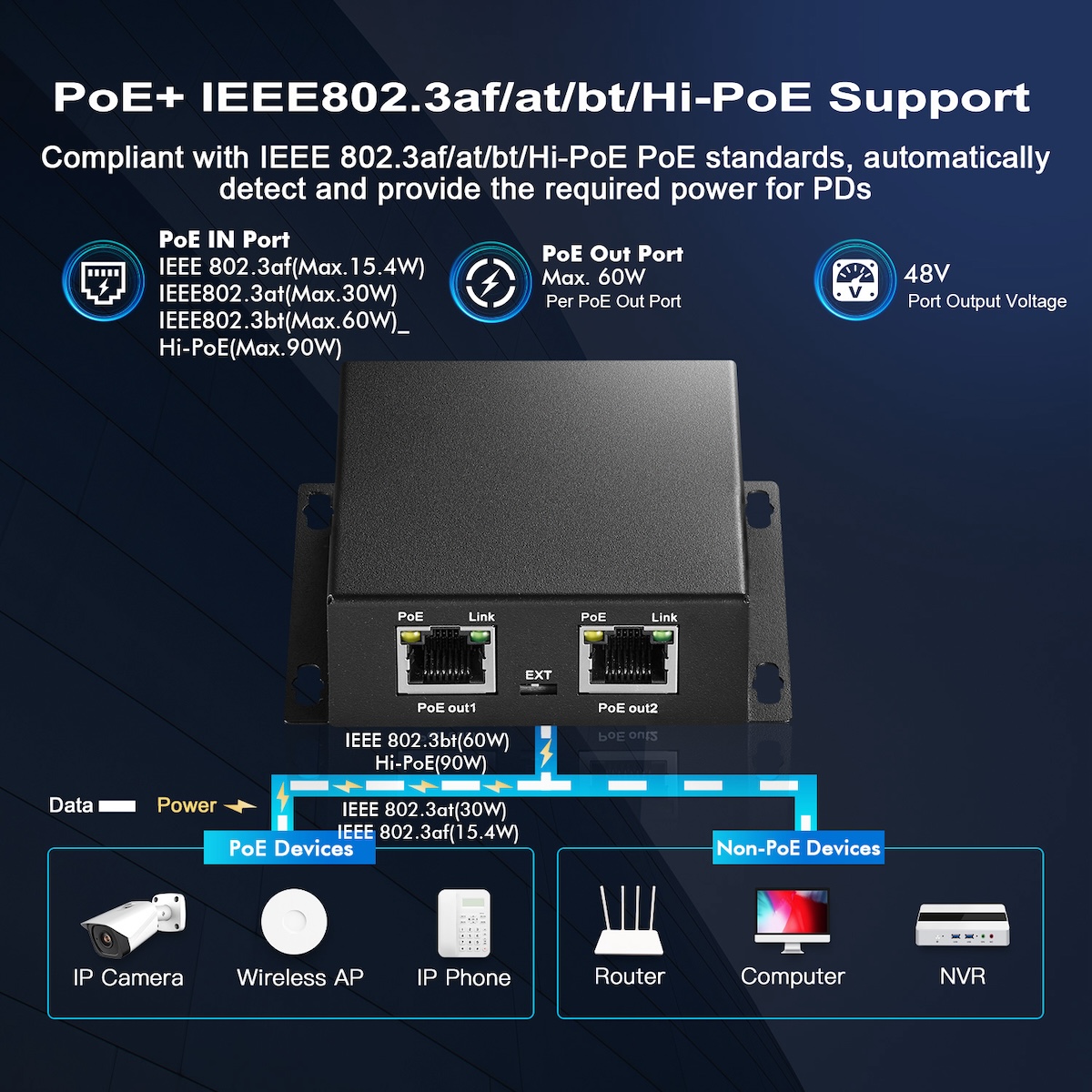

PoE ProtocolHi-PoE(90W), IEEE802.3bt (60W), IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Pin1/2(+),3/6(-);4/5(+),7/8(-)
PoE Power BudgetInput Max 90W, Output Max 90W, PoE Voltage 44-57 Vdc
Network Medium210BASE‑T: Cat3,4,5 UTP(≤250 meter) 100BASE‑TX: Cat5 or later UTP(150 meter) 1000BASE‑TX: Cat6 or later UTP(150 meter)
Transmission Distance Up to 1000ft(300m) ,support 3 level cascading
Lighting Protection3KV 8/20us IP30
Working Environment Working Temperature:-10~55°C, Storage Temperature:-40~85°C

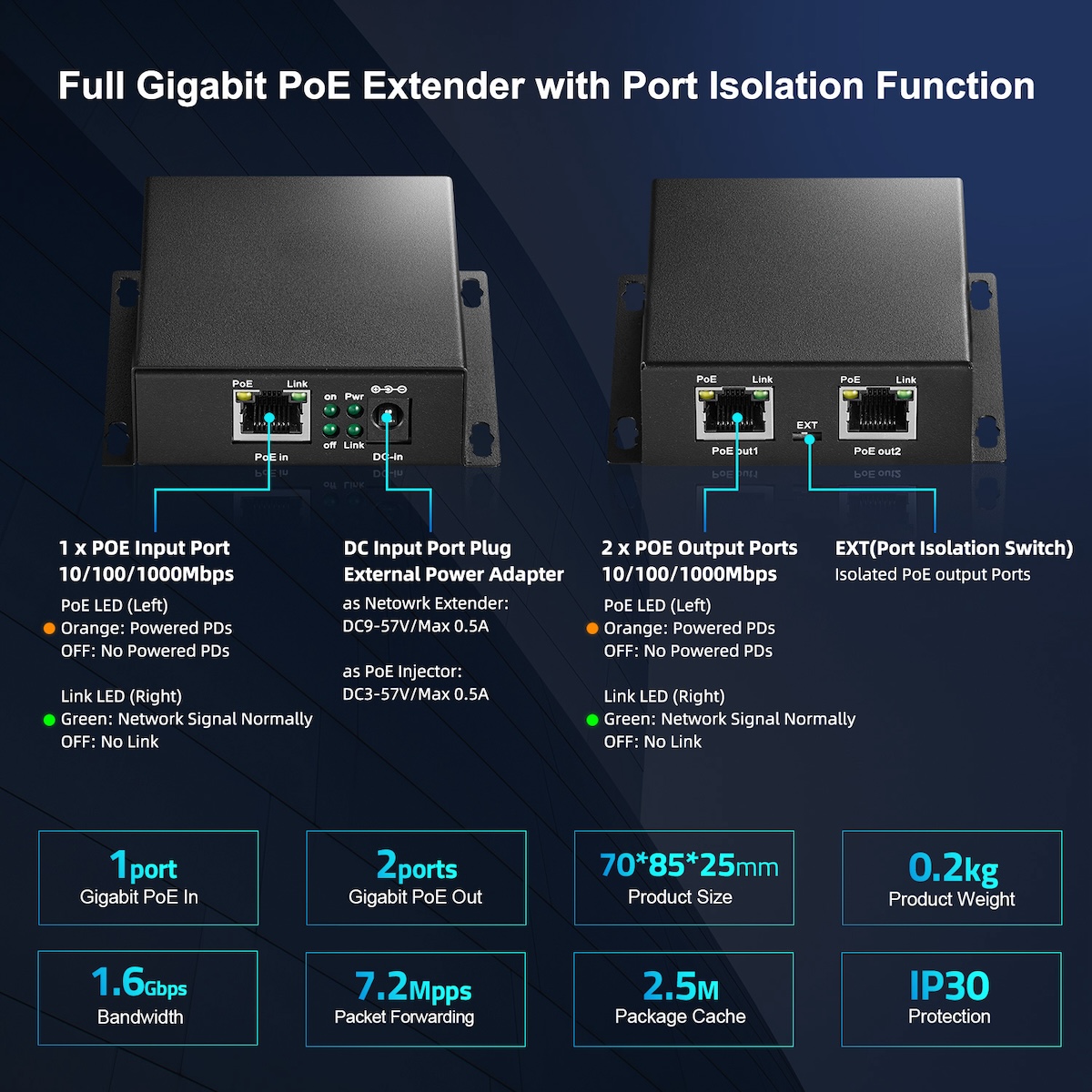

LED IndicatorPWR: Power LED Port LED: Orange=PoE LED, Green=Link LED ON/OFF: EXT Function
DIP SwitchEXT:
 Port
 Isolation
Structure SizeProduct Dimension (L*W*H): 70*85*25mm Package Dimension (L*W*H): 105*105*63mm N.W: 0.15kg G.W: 0.2kg

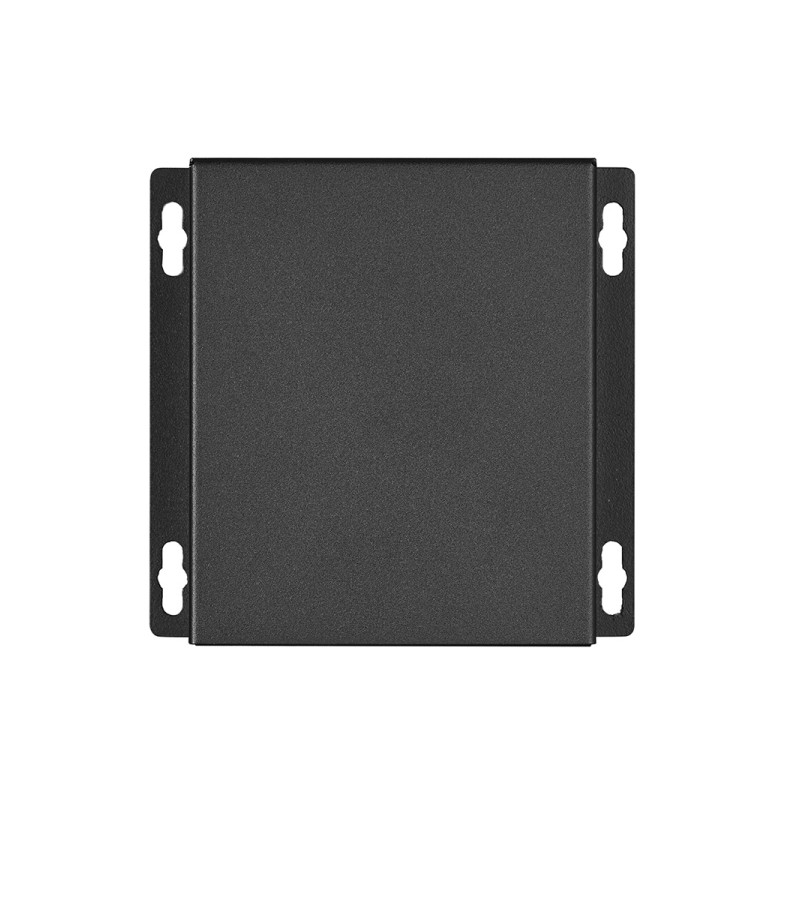

InstallationDesktop and Wall Mount
ShellMetal
Power Voltage1 - Default Configuration: No power 2 - optional 12V / 0.5A power as network extender 3 - optional 52V / 0.5A power as PoE switch
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added

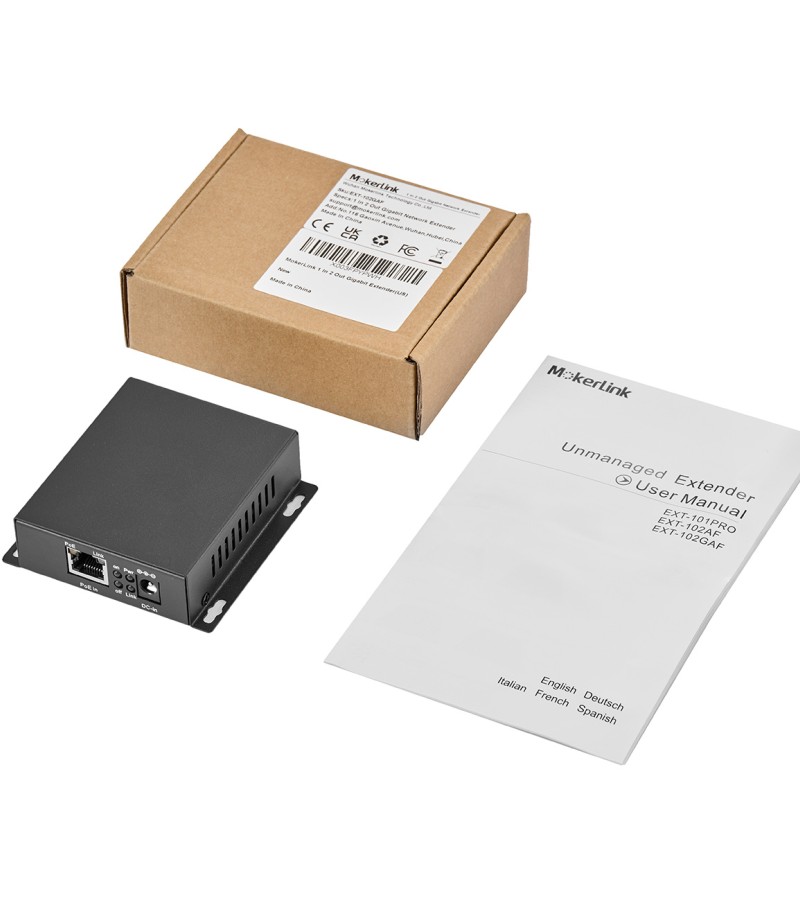

POE Extender User Manual 1.2MB 03/12/2022 13:21:55
