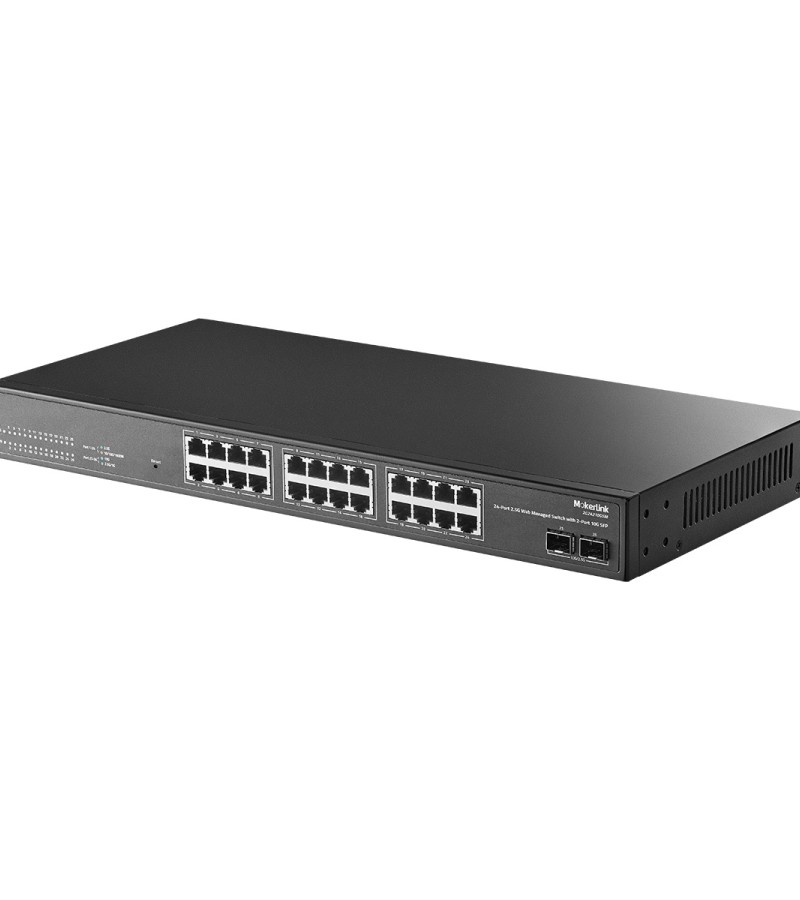

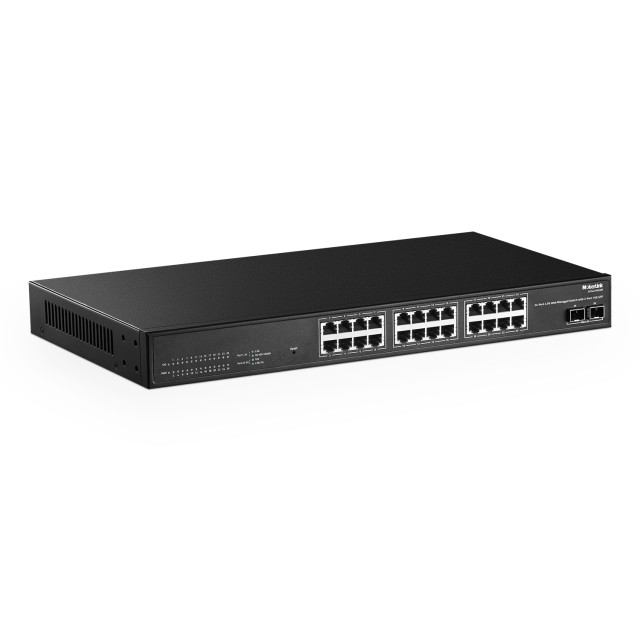

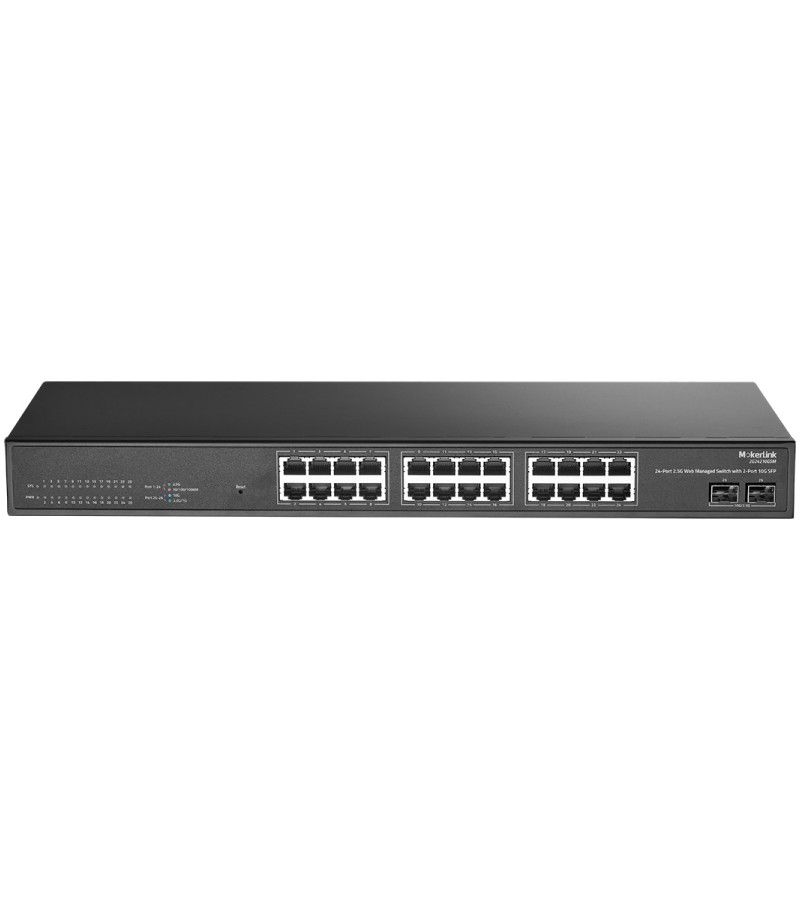

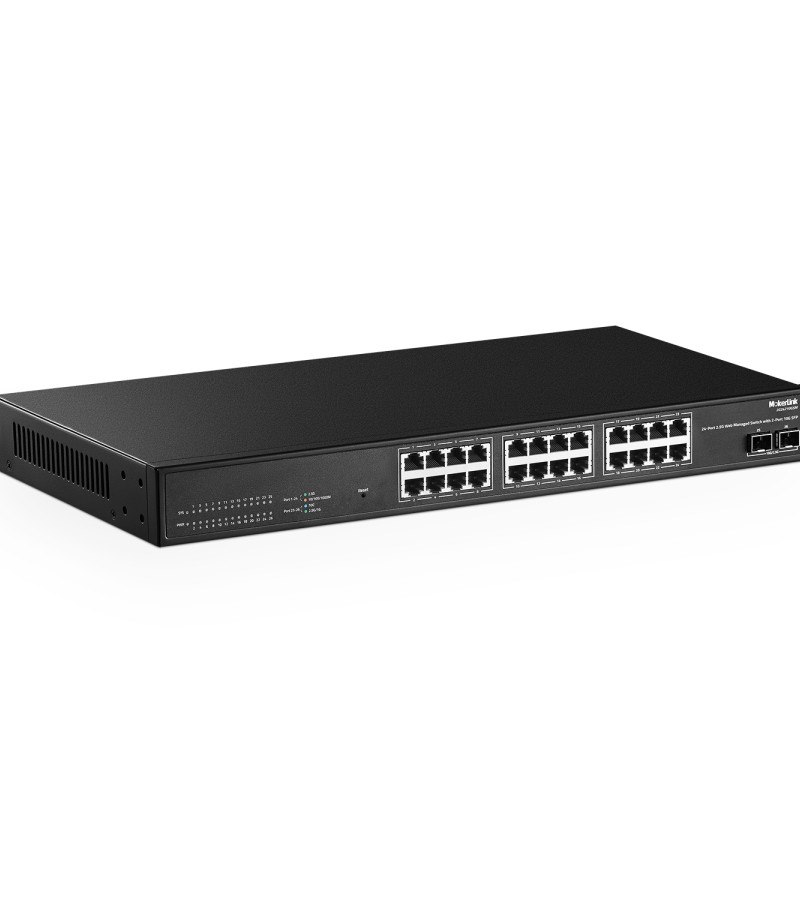

MokerLink 24 Port 2.5G Managed Ethernet Switch with 2x10G SFP, 24x2.5G Base-T Ports, Support LACP/VLAN/QOS/IGMP, Metal Web Managed Fanless RackMount Network Switch
24 x 2.5G Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 2 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 160Gbps backplane bandwidth, excellent data forwarding performance, Support L2 managed features, such as VLAN, QoS, security, multicast, MAC address table, diagnosis, Static Aggregation, LACP, etc. Easy to Maintain with power and port led indicator light, Widely Used for various environments, such as home entrainment and office, 4K video
- Brand: MokerLink
- Product Code: 2G24210GSM
- Availability: In Stock
Main Features
2.5G Ports: The network switch has 24 x 2.5Gigabit Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 2 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 160Gbps backplane bandwidth, excellent data forwarding performance
Easy Web Managed: Support device/port status query and various L2 configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, Static Aggregation, LACP, etc.
Easy to Use: just plug in the power cord, connect the ethernet cable directly to the device, auto MDI/MDIX, auto-negotiation rate. With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation
Easy to Maintain: Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
Widely Used: desktop/rackmount design, well-suited for various environments, such as home entrainment and office, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G24210GSM |
| Product Name | 24-Port 2.5G L2 Managed Ethernet Switch with 2-Port 10G SFP+ |
| Ethernet Port | 24* 100/1000/2500 Mbps RJ45 Ports + 2* 10G SFP+ Ports |
| Switching Capacity | 160Gbps |
| Throughput | 119.04Mpps |
| MAC Address | 16K |
| Jumbo Frame | 12Kbytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| VLANs | 4096 |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5(Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) 2.5GBase-T: Cat5e or above UTP/STP(≤100m) 5GBase-T: Cat6 or above UTP/STP(≤100m) 10GBase-T: Cat6a or above UTP/STP(≤100m) 1000BASE-SX: 62.5μm MMF(multi mode) (Minimum range：2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range：2m～550m) or 10μm SMF(Minimum range：2m～5km) 2500BASE-X: G.652D SMF(Single mode) (Minimum range：2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range：2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range：2m～10km) |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation |
| LED Indicator | PWR On: Power on, Off: Power off. SYS On: The system is operating normally, Flashing: System startup in progress. Warning light System temperature or voltage abnormal alarm. Link Port light Green on: 2.5G Link, Yellow on: 100/1000M Link On: Link transiting, Off: Link not transiting, SFP Port light Blue on: 10G Link Green on: 2.5G Link Flashing: Link transiting Off: Link not transiting. Reset button Short press for less than 5 seconds to restart, Long press for more than 5 seconds to reset to factory default |
| Structure Size | Product Size: 440*204*44.5mm Package Size: 500*290*85mm Product Net-Weight: 2.61KG Product Gross-Weight: 3.12KG |
| Installation | Rack Mount |
| Shell | Black Color, Metal Shell |

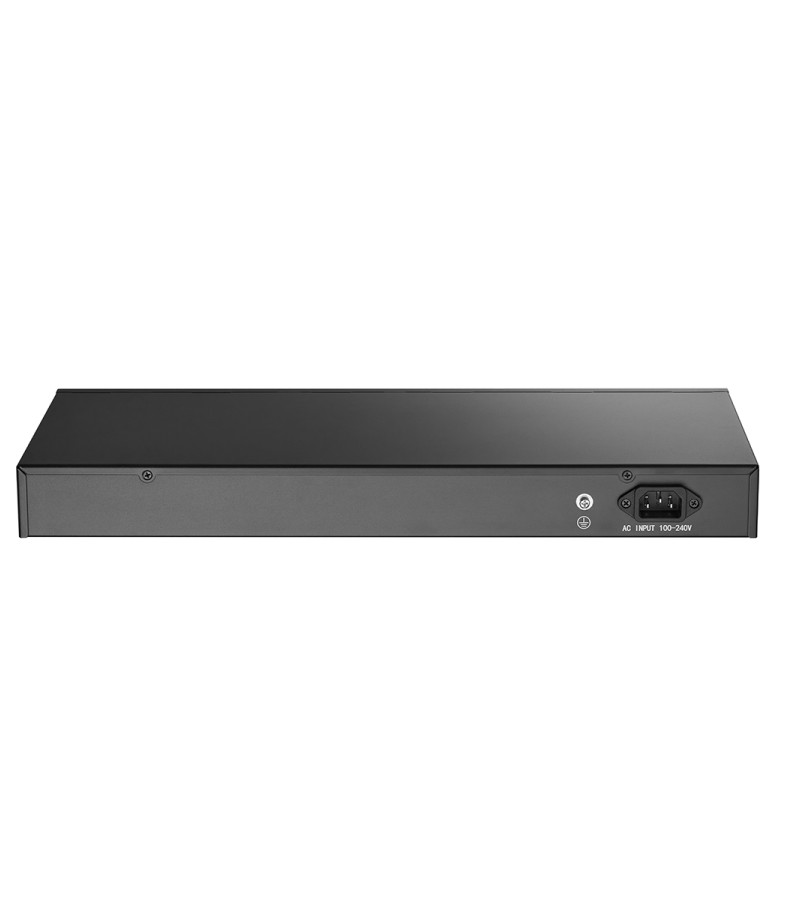

| Power Voltage | AC 100-240V, 12V 4A, Maximum 36W |

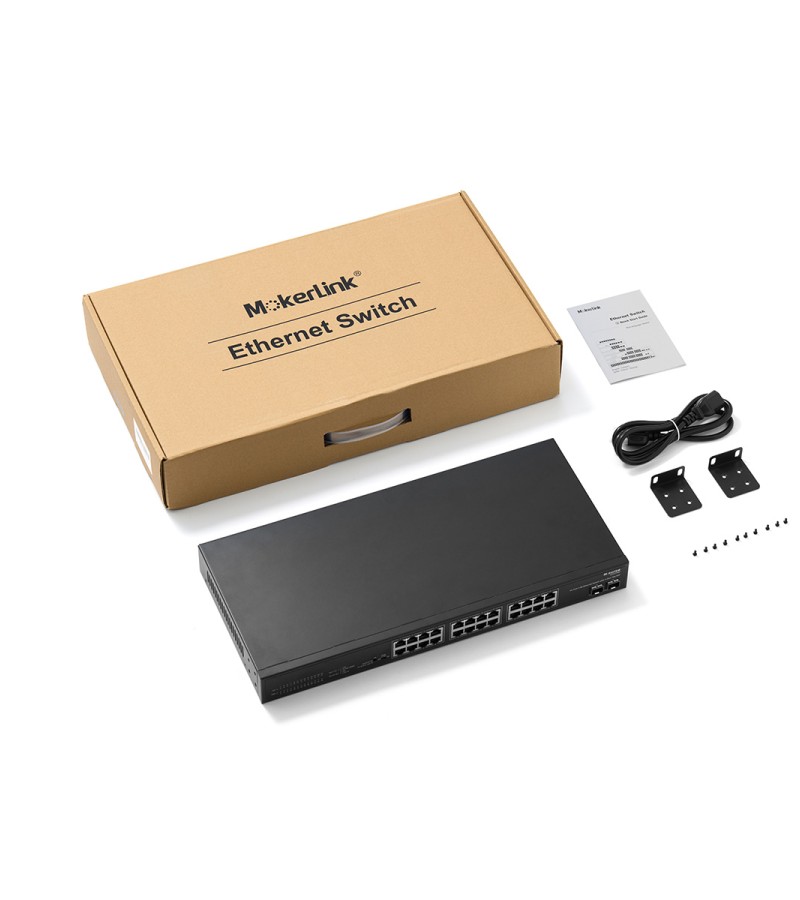

| Package List | Switch 1 PC, Power adapter 1pc, User manual 1 PC |
| Software Function | L2 Managed Features |
